Mono V2 beta patch note

Important PLEASE READ : On the final 2.0 version, there will be an internal script that will transcript old projects into the new format. THIS IS NOT YET IMPLEMENTED. Please upgrade to 1.99, dump your projects on your computer and load them back on an empty slot on mono, to make sure it loads back correctly. Not many people uses this feature so I want to make sure nobody loses their projects!

This is an initial beta release, it has only been tested internally. THERE WILL BE BUGS.

Instruction

  1. Beta testing is an involved process, if you are a casual user and want a smooth experience, I would suggest you to wait for the final release, or at least for a more stable beta in some time.
  2. If you use Mono on stage, please do not use this beta! There will be bugs for sure, and there even might be freezes.
  3. There is NO risk of bricking your unit, even if you do something wrong.
  4. At any time, you can revert back to V1.99, load your project back and make some music. If the beta experience feels frustrating for you, don’t hesitate to revert!

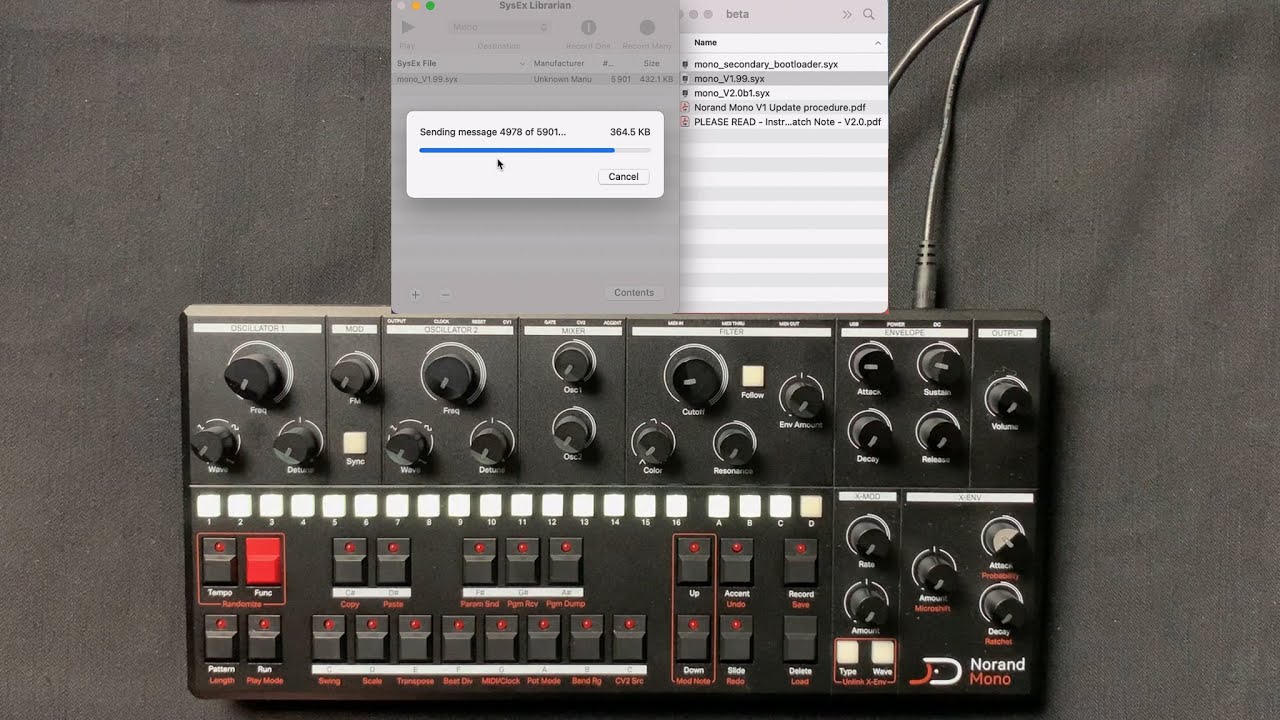

  5. Start by upgrading to V1.99 “mono_V1.99.syx” version with the usual process (see V1 update instruction)
  6. Dump your projects on you computer using your favorite sysex software.
  7. I recommend testing one of the dump by loading it back to an empty project, we’ve had strange issues with exotic combination of OS/Sysex software.
  8. V2’s firmware is HUGE. I didn’t anticipate this when initially developing the bootloader. To avoid any risk of bricked unit, I developped a second stage bootloader, which needs to be installed to then install v2.0. This only has to be done once (except if you revert to 1.99, then you’ll have to reinstall it).
  9. Install the secondary bootloader with the usual process (see V1 update instruction). 3 Seq leds should lit up, then they all turn off.
  10. Once the LED turns off,turn off mono, let’s boot into the secondary bootloader : hold [TEMPO + FUNC] and turn Mono back on. In the secondary bootloader all the keyboard LEDs blink along with the SEQ LEDs.
  11. Upload the V2.0 beta firmware “mono_V2.0bx.syx” with your sysex software, as usual, a minimum “delay between message” of 1ms is required.
  12. Once it’s done it’ll take a bit of time to boot (it’ll recalibrate and reinitialise the memory)
  13. Beta test !

V2.0 beta 0

NOT Implemented :

  • Undo/Redo
  • Patchless pattern
  • CV clock
  • project transcription

New feature

  • There are tons of cosmetic UI changes.

  • Setting offset parameters is not relative to the currrent potentiometer position anymore, but to the center position. Although it was handy to start record automation or place step locks woithout jumping to a position, it was pretty much impossible to know exactly what was the starting position, so you needed to only trust your ears anyway. Starting from the middle allows to use the maximum range of offset at any time.

  • Visualization mode is gone : now the knobs parameter LED brightness will always reflect the current parameter value, the selected parameter is brighter than the others

  • Locking selected parameter : FUNC + SYNC (selected param will blink)

  • Patch load on pattern change is deffered to the first trig of newly loaded pattern (long note aren’t silenced at the end of the ending pattern anymore)

  • Pattern morphing : there are always 2 pattern loaded into memory. To select and load the “morphing pattern” (the pattern to morph to). Go to pattern mode, hold [FUNCTION] + [PATTERN] and select your morphing pattern. Then to morph between the 2, hold [FUNC] and use the [CUTOFF] knob to go from your active pattern fully CCW to the morphing pattern full CW.

  • Duophonic mode : FUNC + SWING → PAGE B to enable (PAGE A to disable). In duophonic mode you can set a pitch for both oscillator. Hold 2 notes on the minikeyboard to set the duophonic pitch and add duophonic notes with the Seq switches. Make a step duophonic : hold the step, hold the first pitch, and press the second pitch.

  • Expressive feature : velocity, pitch, aftertouch, vertical. Each of these MIDI parameters can affect the patch according to custom offsets on any and all parameters and their modulation values, just like the accent on V1. To check/set these offset, a switch needs to be held, when the switch is held the LED brightness of the parameter shows the offset “strength”. Offset can be nagtive, a potentiometer at center position means no offset, full CCW means maximum negative offset, full CW means maximum positive offset. Here are the 4 switches:
    [SLIDE] → Velocity
    [UP] → Aftertouch
    [DOWN] → Vertical (CC74)
    [FOLLOW] → pitch (pitchbend)

These MIDI parameters can be recorded on each steps, like automation when played from an external keyboard or sequencer. There are also ways to edit velocity and Vertical (CC74) automation directly on the synth, as follow.

  • Velocity : To edit a step velocity, hold [FUNC] + the [SEQ] step, and use the X-Mod amount pot to set the velocity from 0 at full CCW to 127 at full CW. When record is enabled, you can hold [FUNC] and move the X-Mod amount pot to record velocity values on the fly.

  • Vertical (CC74) : CC74 is often used for the vertical (Y) axis on expressive keyboard. To edit the CC74 of a step (regardless if there is a trig on that note or not), hold [FUNC] + the [SEQ] step, and use the X-Mod Rate pot to set the CC74 value, from 0 at full CCW to 127 at full CW. When record is enabled, you can hold [FUNC] and move the X-Mod amount pot to record CC74 values on the fly.

  • Pitch : a pitch offset makes the parameter follow the pitch played on the synth (note + pitchbend). By default the 2 oscillators and the filter have an offset of 1 semitone by semitone (logically). The filter tracking can still be enabled/disabled with the follow switch. On the 2 oscs on the filter the offset is not linear but quantized, this allow for microtonal/macrotonal playing. At center position the oscs/filter don’t track, there are then 6 positions on the positive and negative side : ⅛ semitone - ¼ semitone - ½ semitone - 1 semitone - 1 tone - 2 tone .

  • Aftertouch is the only paramater that cannot be set directly on mono, but can be recorded via MIDI

  • You can delete a step’s aftertouch, CC74 and pitchbend value by holding [DELETE] + the [SEQ] step, and press [FOLLOW]

  • Randomize step range : you can now randomize a range of step, hold [TEMPO] + [FUNC], hold the [SEQ] starting the range, and then press the [SEQ] ending the range, release, and voila

  • Randomize automation range : hold [TEMPO] + [FUNC], set the desired range by holding the first [SEQ] and pressing the end [SEQ]. Release the [SEQ] switches (not [TEMPO] and [FUNC] then turn the desired knobs parameter left and right to set the randomisation range, just like the randomize automation feature.

  • New global param : quantize record (on by default) [FUNC] + [Bend Rg] → PAGE A disabled, PAGE B enabled

  • New pattern param : Scale autoquantize : [FUNC]+ [TRANSPOSE] → PAGE A disabled, PAGE B enabled. When scale autoquantize is enabled, changing the scale will move the notes of the pattern according to the new scale, it uses a smart algorithm that works pretty well even on custom scale. The algorithm is however destructive : if you go from a 7 note scale to a custom scale of 4 notes and switch back to a 7 note scale, you wont get back the same pattern.

  • Automation on mod notes → mod note are not “set in stone” as they used to be, they can now be affected by automations

  • mod note pitch : you can edit a mod note’s pitch : hold the mod note [KEY] and press [UP] or [DOWN] to set the mod note octave. hold [UP] + [DOWN] and press a [KEY] to set the current modnote semitone. Hold a step [SEQ] that contains a modnote and press [UP] or [DOWN] to change its pitch.

  • Step dice range : since you can now randomize step ranges, step dice shortcut has changed, you need to hold [TEMPO] + [FUNC], press the end step, and then the first step of the range (the order is important).

  • range copy/paste: You can copy/paste a range of steps : hold [FUNC] + [COPY], hold the start [SEQ] of the range and press the end [SEQ] to copy a range of steps. Then hold [FUNC] + [PASTE], the starting [SEQ] step where you want to paste, and then the end [SEQ].

  • Page copy/paste : you can copy/paste, hold [FUNC] + [COPY] then press the [PAGE] to copy, then hold [FUNC] + [PASTE] and press the [PAGE] where you want to paste.

  • Song mode : The number of patterns in a song is now unlimited.

5 Likes

Hello!

Thanks for all the work on this FW.

Regarding this:

Is this referring to the mode enabling the display of all the values and modulations at the same time on knob LED’s? (accessed via 3 presses on FUNC)

Unlimited Song Mode – nice!

I would like to help debug this firmware. I’m planning on using a Korg SQ84 and Bitwig Studio. Do you have any suggestions / preferences for the debug process?

@Gael : yes it is!
@ablueksy : No specifics, we had 2 runs with an internal test procedure but it is quite generic, so if it passed twice it’ll probably pass 3 times. I would suggest using Mono as usual, trying to use the old and new features as much as possible.

Hey @Mathieu

Great effort with the V2 firmware - Some great additions to the instrument.

Do you want us to post Beta testing responses here?

Cheers,
Adam

V2.0 beta 1

New feature :

Duophonic mode : You can edit the second pitch of a duonote by holding FUNC + the duonote’s [SEQ] position, and selecting a pitch on the minikeyboard (allows for spreads wider than an octave)

Bug fixes :

  • Lots of small stability improvment

  • Reworked some of the morphing internal event handling, which solve most of the bug related to it.

  • Reworked duonote mode handling, solving bugs

  • Increased boot speed (no clicky sound at startup)

  • Switching pattern no longer resets morphing value

  • Master volume and synth mute now works properly

  • Improved save and load (now fully asynchronous) and added a blink confirmation

  • Improved synced LFO stability, SH now works properly

  • Fixed step dice

  • Recording duonotes now works properly

  • Fixed an XEnv trig display bug

  • Fixed rotate pattern

  • Pattern change now works in modnote

  • Copy/Paste pattern properly copies pattern parameters

  • Clear modulation now works on modnotes

3 Likes

EDIT: found the link in v2.0 thread. Will drop it here in case others see this :slight_smile:
https://storage.googleapis.com/norand_public_files/mono_2.0b2.zip

You’re the best!! I’m excited to try v2.0 Beta 1! I have not received an email to download the new sysx file though; @Mathieu can you drop a link please?

Ty,
Joey

Just dropping by for a word of support to Norand for this massive upgrade and all the work it requires.

Although I cannot take part in beta testing at the moment (too busy with work), I can’t wait to see the new FW in action!

Cheers!

tried 3 x times today to install 20b2

199 first, no problem,
bootloader then, no problem
20b2 then: stuck in the calibration

every time

i like this synth a lot, but man the betas are giving me a hard time
that never happened with other companies

Hi!

I updated to 199 without a problem.
Uploaded bootloader, and trying to update 2.b1 or 2.b2 and my Nornand does not restart or calibrate.
If i turn on the device nothing happens unless i put it on update mode.
Can I revert to V1? Where can I download the file?
Cheers

Hi,

You can revert to 1.99

1 Like

V2.0 beta 3 (stable)

New feature:

  • V1 project transcription : when booting after updating from 1.99, Mono will transcript your “old” project into the new format, this taakes a while but is visible on the interface. Once the project is loaded you can listen to your old pattern before saving into the new format.
  • V2 Program dump
  • V1 and V2 project program receive with the usual key combination
  • Clear pattern velocity automation [DELETE] + [SLIDE]
  • Clear pattern accent automation [DELETE] + [ACCENT]
  • Clear pattern aftertouch automation [DELETE] + [UP]
  • Clear pattern vertical automation [DELETE] + [DOWN]
  • Clear pattern slide [SLIDE] + [DELETE]
  • Clear pattern accents [ACCENT] + [DELETE]
  • Set Mod note midi channel : Go to Midi param with [FUNC] + [MIDI/Clock], hold [MIDI/Clock] and select channel with a [SEQ] key.
  • Play/Record mod note via MIDI : use the mod note midi channel (channel 2 by default)
  • Mute : The “mute” key previously was [SLIDE], it is now [DOWN] (Hold down + key or modnote to mute/unmute) hold DOWM amd press delete to unmute all
  • CV output calibration : You can now precisely calibrate the CV outputs of mono. The calibartion work by octave, you can precisely set the voltage output level for each of the 11 octaves, on each output (From -5V to +5V). To do so, boot the unit while holding [UP] + [DOWN], connect CV1 output to a precise VCO, set the offset for the first octave using VCO1 Freq knob. Press [C] to switch to the next octave, set the offset with the same pot … and so on. Once you are done with CV1 it’ll switch to CV2. Repeat the operation until the end, and voila. Note : Most analog VCO don’t have a -5V to 5V range at their input, so make sure to use one that does, or just don’t change the calibration of the out-of-range low octaves.

Bug fixes :
There is 188 closed tickets on the issue tracker, I will spare you the list.

Download

2 Likes

V2.0 beta 5

Instruction

If you haven’t installed beta3 or beta4 before, please follow the instructions of beta3, replacing mono_v2.0b3.syx by mono_v2.0b5.syx.

If you previously had beta 3 or beta 4installed, you can directly install mono_v2.0b5.syx : Reboot in the secondary bootloader ([TEMPO] + [FUNC] and power cycle) then send the mono_v2.0b5.syx file. Make sure to wait until the unit boots and is responsive.

Note

A couple of overflow bugs were found and solved, which mean that prior to this version there was a possibility that your project would get corrupted. If you experience a freeze, this might be the cause. In that case please copy/paste another empty project over the corrupted one, or simply wipe the memory with [FOLLOW] + [F#] + [G#]+ [A#] at boot if you don’t have data you wish to keep.

New feature:

  • Morphing rework : A lot of small but important improvement where made to the morphing system. On top of a lot of bug fixes, there are 2 new feature.
  • When starting to morph from main to morph pattern by holding [FUNC], you will need to bring the [CUTOFF] pot to the previous morphing position to enable it, e.g. fully CCW at the beginning of the morph, to avoid weird morph jump.
  • When reaching full CC position (main pattern silent, morph pattern full), the 2 pattern will swap : the main pattern will become the morph and vice versa. The previous morph pattern is now active and editable. To morph back, you need to go back to CCW position and proceed!
  • You can now save the current morph patch in a new pattern : go to pattern mode, hold record and press a pattern slot. The patch will be created there, it’ll copy pattern A or B steps depending on your morph position.
  • Improved CV output calibration : same system but you can now use Freq for rough calibration and fine pot for fine!

Bug fixes:

  • Clock/Reset now works properly
  • MIDI/USB clock was sometime not working properly, this was fixed
  • Some fatal bugs were found on the sequencer (unlinked XEnv was causing crash and project corruption, among others), all taken care of
  • CV/Gate out now works properly
  • Solved a few bugs regarding scales and scale auto transpose

Download

Confirmation:

  • Beta5 now loaded and running without issue-- 3 auto tuning routines, then automatic reboot. Does not delete current project. User must hard reboot before using (my Volume was reversed before hard reboot)

  • CV/Gate now working after CV calibration-- User MUST scale CV1 and CV2 all the way through to “store” settings.

can anyone explain if i have to update via another beta? eg: if i want to update to beta 5 do i need to update to beta 2? or do i just skip over to beta 5?

Updates are cumulative. So yes, update to Beta 5.

V2.0 beta 6

Instruction

If you haven’t installed beta3, 4 or 5 before, please follow the instructions of beta3, replacing mono_v2.0b3.syx by mono_v2.0b6.syx.

If you previously had beta 3, 4 or 5 installed, you can directly install mono_v2.0b6.syx : Reboot in the secondary bootloader ([TEMPO] + [FUNC] and power cycle) then send the mono_v2.0b6.syx file. Make sure to wait until the unit boots and is responsive.

Bug fixes:

  • More pattern morph tweaking
  • LEDs shows pattern correctly in pattern mode
  • TEMPO + X-ENV AMOUNT works correctly for tempo change
  • Mod Note patch sometime didn’t load properly
  • Interface unresponsive after copy/paste patterm
  • Pitch bend range was off by 1 semitone
  • Randomize step & mod note doesn’t affect fine parameters anymore
  • Improved undo redo in record mode
  • MIDI clock could not start under certain situation
  • Improved mod note randomizer
  • Improved note vizualization

Download

1 Like

Hey there,

I’ve spent many hours trying to upgrade my unit to the V2.0b6 version, but it seems that I’m stuck at the secondary bootloader. After updating to the secondary bootloader, the 3 LEDs to the left should light up but also dim again. With my unit, the 3 LEDs remain on and the unit is unresponsive after turning it back on. What do I do? It doesn’t say in the comments. I’ve tried reverting to 1.99 and putting in the secondary bootloader many times, it always keeps giving the 3 LEDs. When I try to update to V2.0b3, the bit transfer gets stuck at 256 bytes and the unit is unresponsive.

Can someone tell me how to get past the second bootloader stage and not be stuck at the three LEDs that keep burning?

Regards,
Tom

Also, I tried reverting back to the original firmware 1.2.3. After loading it into the unit it doesn’t turn back on.

This is getting pretty frustrating…
